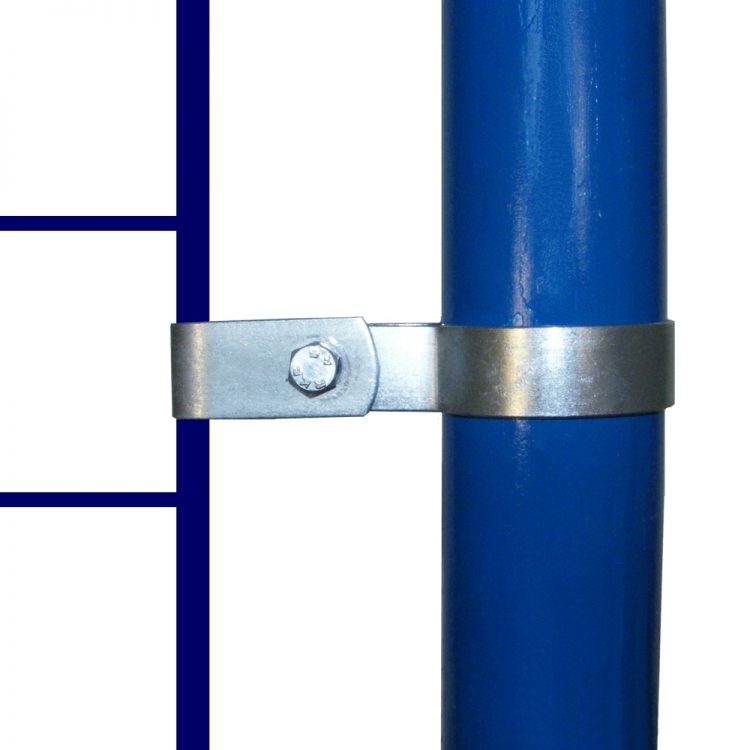

170 – Single Mesh Panel Clip
Description
For attaching mesh panels to one side of tube. For double-sided clips, please refer to type 171 Interclamp Fitting. This fitting may also be used without the small return part to secure certain other types of sheet material to tubes eg. Board. The tube cannot be joined within the fitting. N.B. This item is manufactured from steel, not malleable iron. Please note that bolts are BZP coated. Designed to suit 8mm rod.

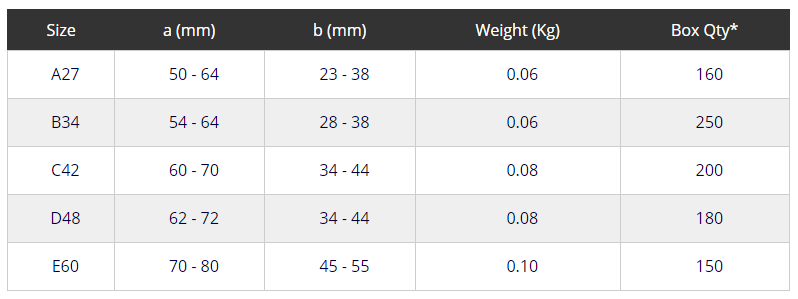

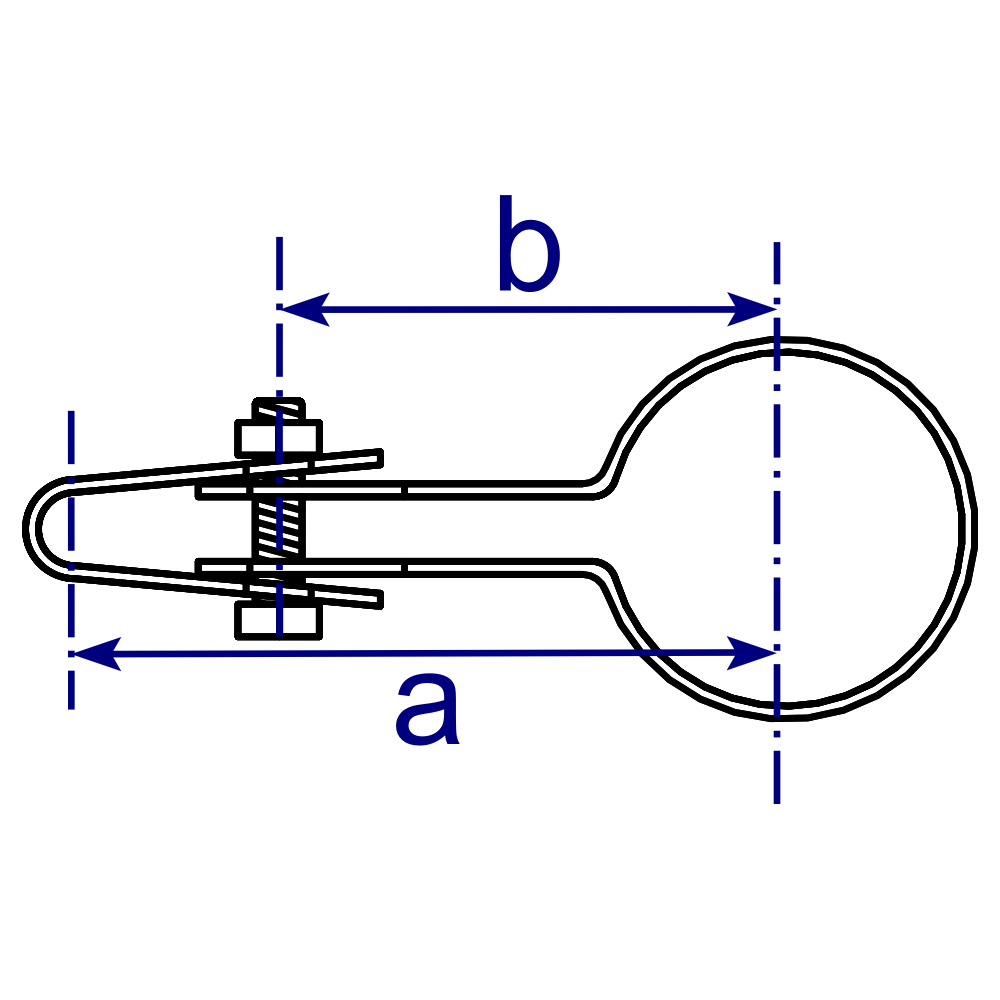

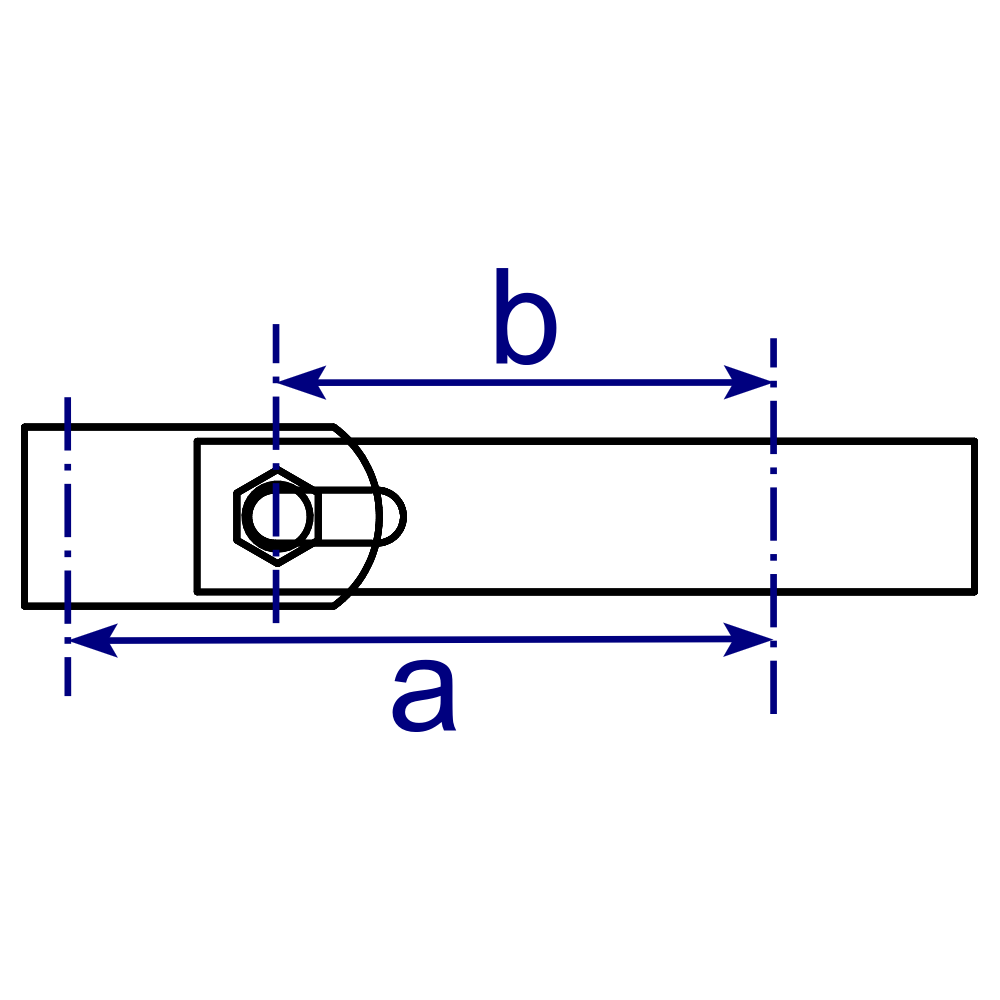

Tube Sizing
Hover over tube sizing diagram for more info
| 170 - Single Mesh Panel Clip | Price | Quantity | ||
|---|---|---|---|---|
| GI170A27 | £1.10 | |||
| GI170B34 | £1.10 | |||
| GI170C42 | £1.22 | |||
| GI170D48 | £1.24 | |||
| GI170E60 | £1.58 |
From £0.92
