165 – Combined Tee and Crossover
Description

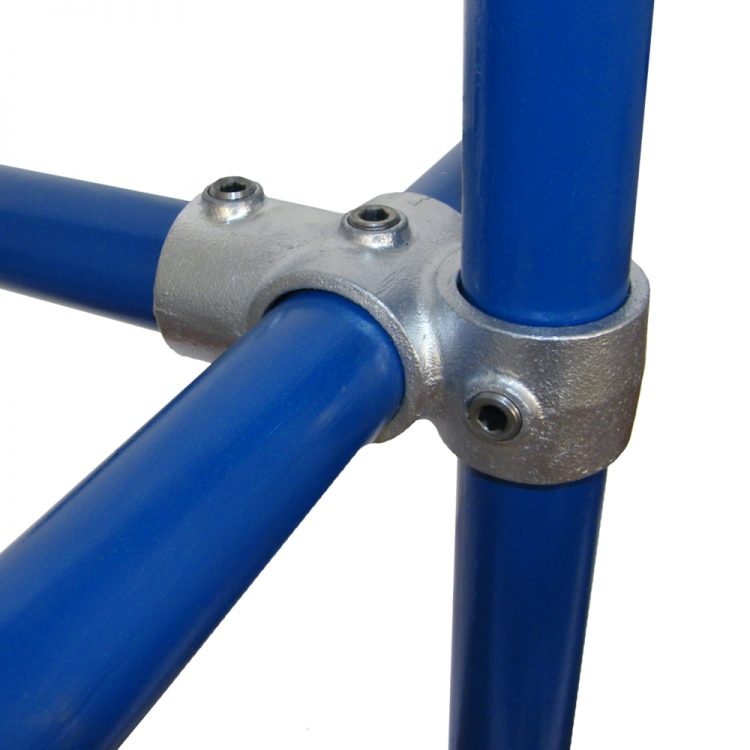

This combined tee and crossover fitting is often used in racking and similar structures, the fitting allows both uprights and front and rear horizontal rails to be continuous. It is usually preferable for the upright to be on the outside of the structure (as per the photo) for maximum stability. The through tubes cannot be joined within the fitting.
| 165 - Tee and Crossover | Price | Quantity | ||
|---|---|---|---|---|
| GI165B34 | £4.66 | |||
| GI165C42 | £5.56 | |||
| GI165D48 | £7.33 | |||
| GI165E60 | £11.86 |
From £3.88
