156 – Slope Cross (Middle Rail) (0 to 11 degrees)

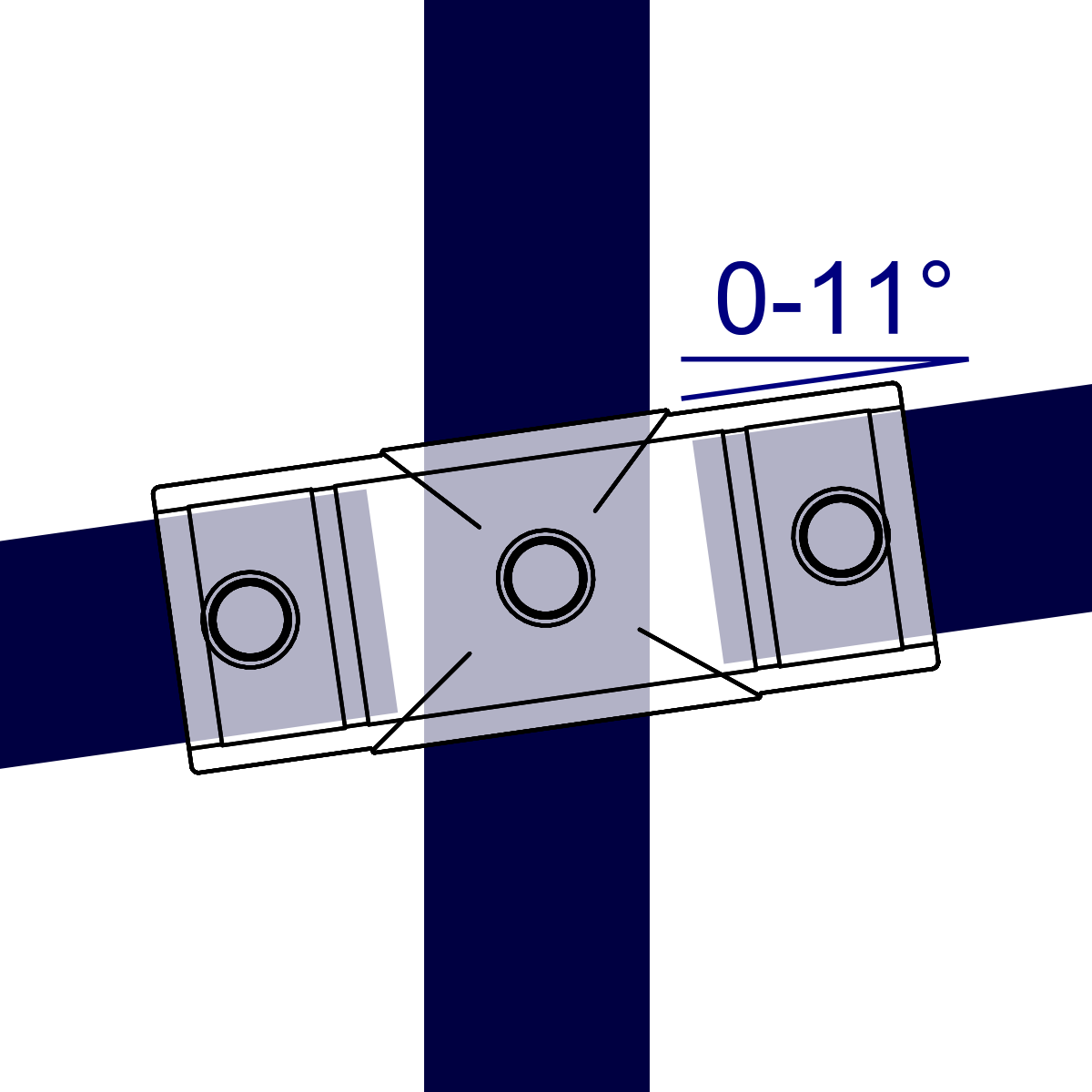

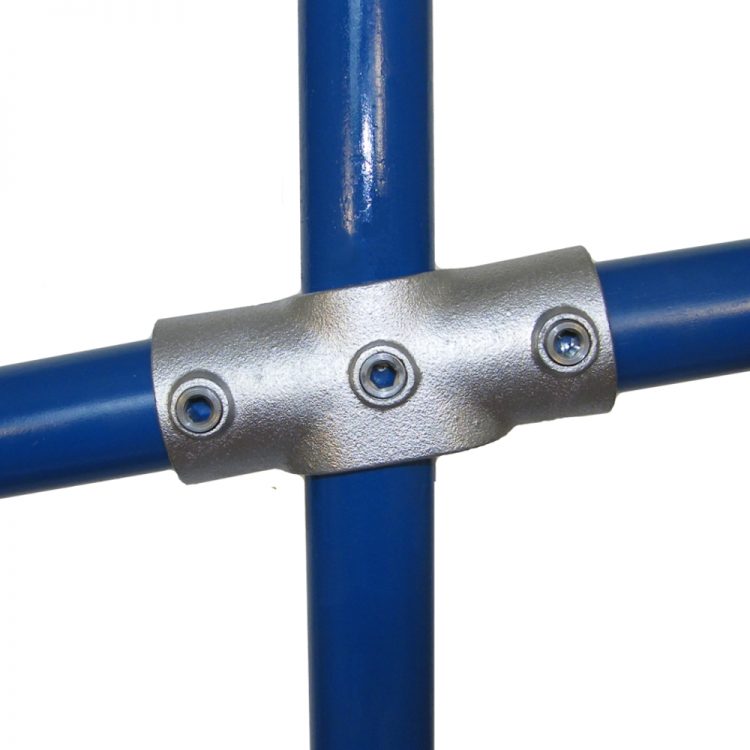

Sloping Cross mid-rail fitting adjustable from 0 to 11 degrees; often used between middle rail and uprights on sloping sites and often paired with type 153 Interclamp Fitting or 155 Interclamp Fitting. The through tube (vertical in photo) cannot be joined within the fitting.



156
156-side156-bottom156-angle
156 - Slope Cross (Middle Rail) PriceQuantity
GI156B34 £4.39
✓
GI156C42 £6.58
✓
GI156D48 £7.97
✓
Add selected to cart ✓

From £4.39
